Reliable Food Processing Solutions

Dehairing & Plucking Equipment

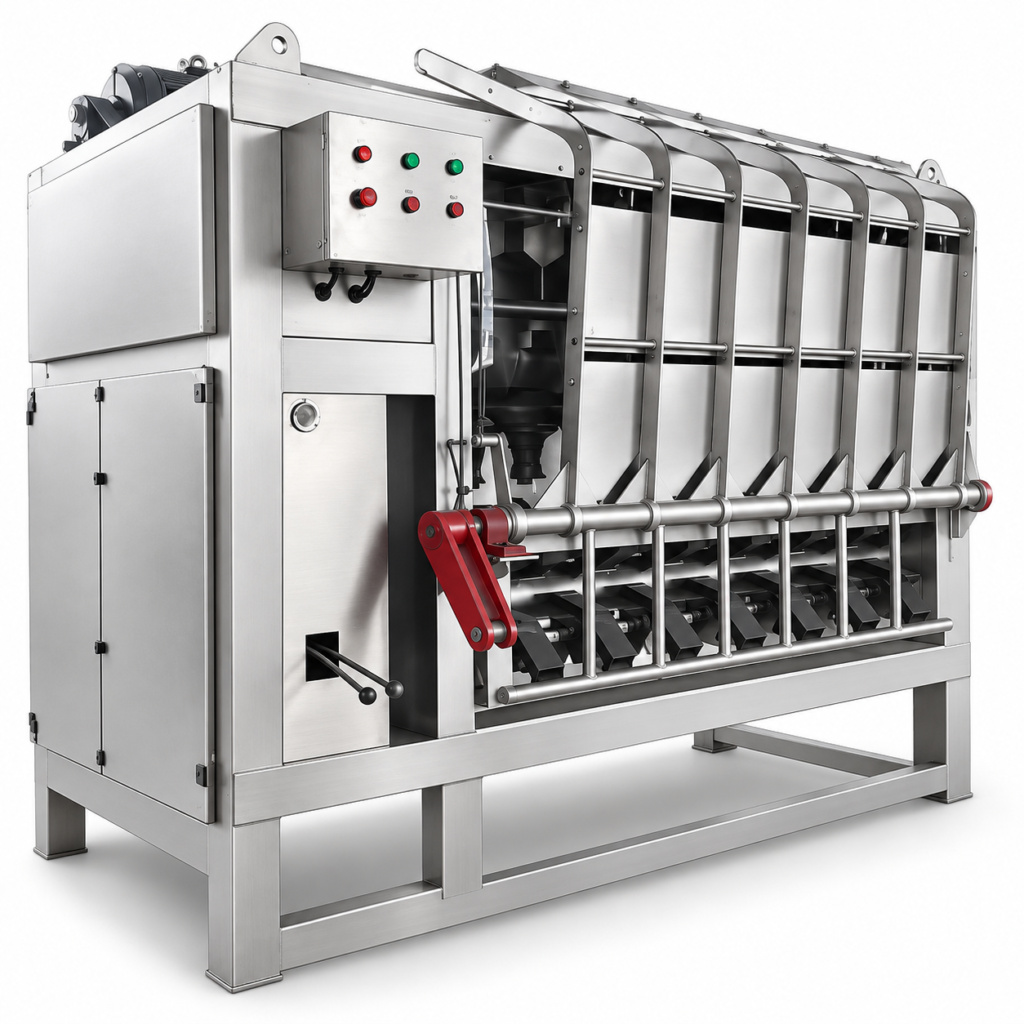

Pig Dehairing Machine

Pig dehairing machine for removing hair from pig and hog carcasses after hot-water scalding. Designed for small and medium slaughtering operations and suitable for use with a pig scalding tank.

Model
GS-ZTMJ-001
Capacity
Approx. 10 pigs / hour
Power
14 kW

Product Overview

Quick answer

Pig dehairing after scalding

How it works
Scraping paddles on several rotating shafts tumble the scalded pig and scrape off the hair, then discharge it automatically.
Result
Over 95% of the hair is removed in about one minute.
Size
Built to the weight of your pigs.

Scald, lift and dehair

  1. Scald at 58–63 °C
  2. Lift into the machine
  3. Dehair in about a minute
  4. Automatic discharge

Scald the pig in 58–63 °C water for 3–5 minutes. Then load it by hand, or add the optional lifting rake: it is mounted on the dehairing machine and rests on the bottom of the scalding tank. After scalding, pull the lever and the rake lifts the pig straight into the machine.

Some hair may remain in folds at the snout, ear roots and legs. It can be singed off after dehairing.

Scalding tank, wear parts and installation

Scalding tank
The matching Pig & Sheep Scalding Tank can be supplied with the machine.
Wear parts
Scraping paddles. Spare paddles are supplied with the machine.
Installation
No anchoring is needed. The machine ships in one wooden crate.

Buyer FAQ

Can it process piglets or suckling pigs?

Very small pigs may not be gripped well. The machine is sized to the pig weight you process, so tell us your smallest and largest pigs.

Can the same machine dehair sheep?

Sheep and goats are handled by the Sheep Dehairing Machine, which uses rubber fingers instead of scraping paddles.

Technical Specifications

Model
GS-ZTMJ-001
Capacity
Approx. 10 pigs / hour
Power
14 kW
Voltage
380 V / Customized
Dimensions
2600 × 1800 × 2200 mm / Customized
Material
Hot-Dip Galvanized Steel + 201 Stainless Steel
Weight
Approx. 1200 kg
